| 船用發電機組Marine generator set |
|
|
|
|
|
|
| 項目Items | 單位Unit |
|
|
|
|
|
|
| 系列Series | | 6G26系列 | 8G26系列 | 9G26系列 |
| 機組型號Gen-Set Model | | CCFJ1825J-W | CCFJ1900J-W | CCFJ2430J-W | CCFJ2530J-W | CCFJ2735J-W | CCFJ2850J-W |
| 發動機型號Engine Model | | 6G26 | 8G26 | 9G26 |
| 機組功率Power | kW | 1825 | 1900 | 2430 | 2530 | 2735 | 2850 |
| 頻率Frequency | Hz | 60 | 50 | 60 | 50 | 60 | 50 |
| 轉速Speed | r/min | 720 | 750 | 720 | 750 | 720 | 750 |

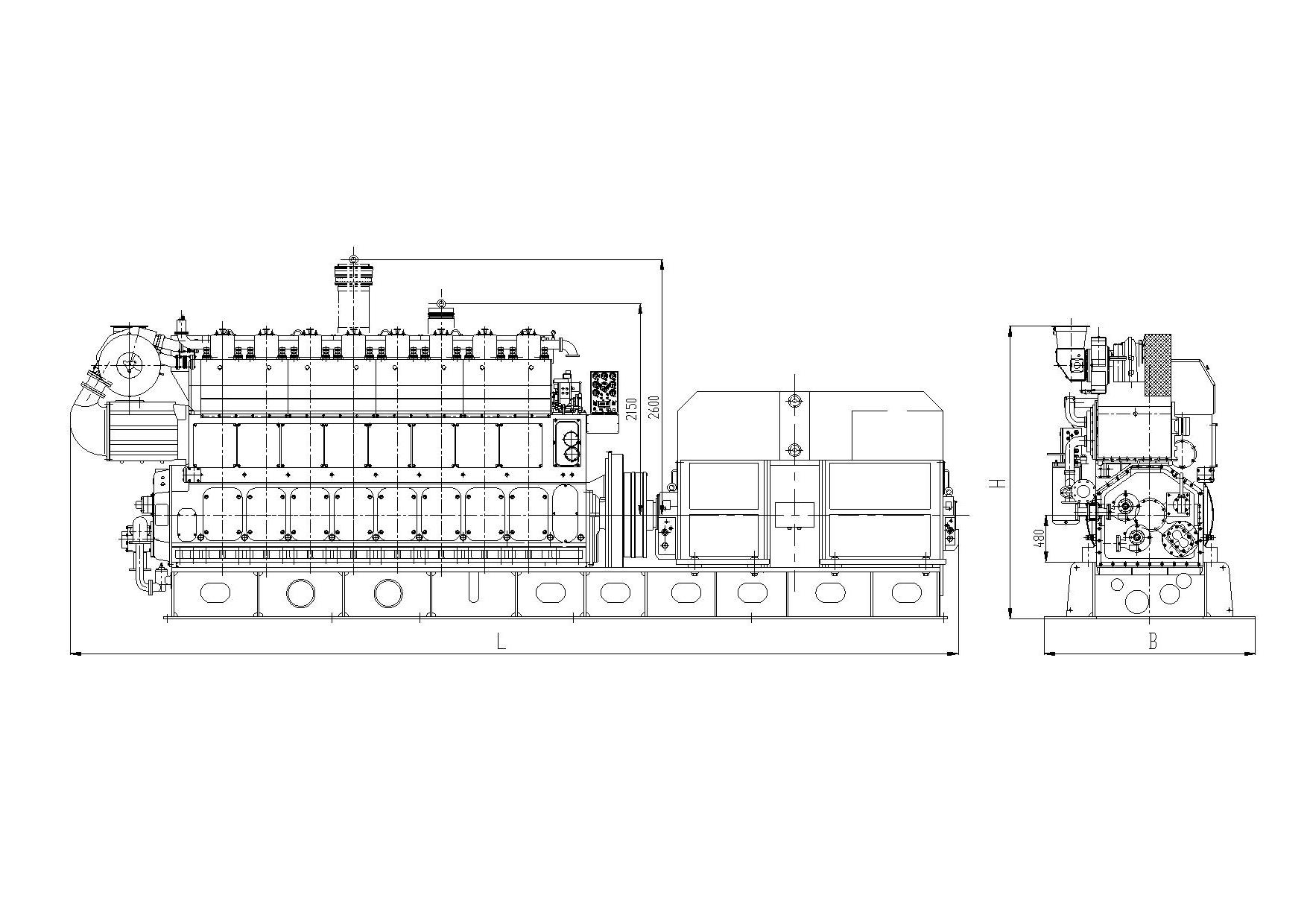

| 外形尺寸 Outline dimension (長×寬×高)(L×B×H) | mm | 8152×2152×3120 | 9042×2152×3120 | 9487×2152×3120 |
| 重量 Weight | kg | 53000 | 61000 | 74300 |
| 證書 | | CCS |
| 燃料類型Fuel type | | 380cSt/50℃ HFO |
|
|
|
|
|
|
|
|
| 說明Explantions： |
|
|
|
|
|
|
| 1、各型號機組的供貨范圍，按相應技術文件執行。 |
|
|
|
|
|
|
| The delivery scope for each model engines shall be performed as per the corresponding technical files. |
| 2、所有機型均可滿足IMO TireⅡ的要求，可提供400V、690V、6600V、11000V等不同電壓的產品。 |
|
|
|
| All the model engines can meet IMO Tire Ⅱ requirements. Voltage of generator set appointed by customer, such as 400V, 690V, 6600V, 11000V. |
|
