| 漁檢8缸主機 | | | | | |
| 項目Items | 單位Unit | | | | |
| 系列Series | 8G32 | ||||
| 型號Model | 8G32A | 8G32Y | 8G32EY | ||
| 功率Power | kW/Ps | 3906/5310 | 3534/4800 | 3198/4350 | |
| 轉速Speed | rpm | 600 | 570 | 515 | |
| 缸徑Bore | mm | 320 | 320 | 320 | |
| 沖程Stroke | mm | 480 | 480 | 480 | |
| 活塞平均速度 Mean piston speed | m/s | 9.6 | 9.12 | 8.24 | |
| 平均有效壓力 BMEP | MPa | 2.53 | 2.41 | 2.41 | |
| 燃油(氣)消耗率 Fuel consumption | 100%MCR | g/kWh | 181 | 181 | 181 |
| 85%MCR | 179 | 179 | 179 | ||
| 潤滑油消耗率 Lube oil consumption | g/kWh | 0.8 | 0.8 | 0.8 | |

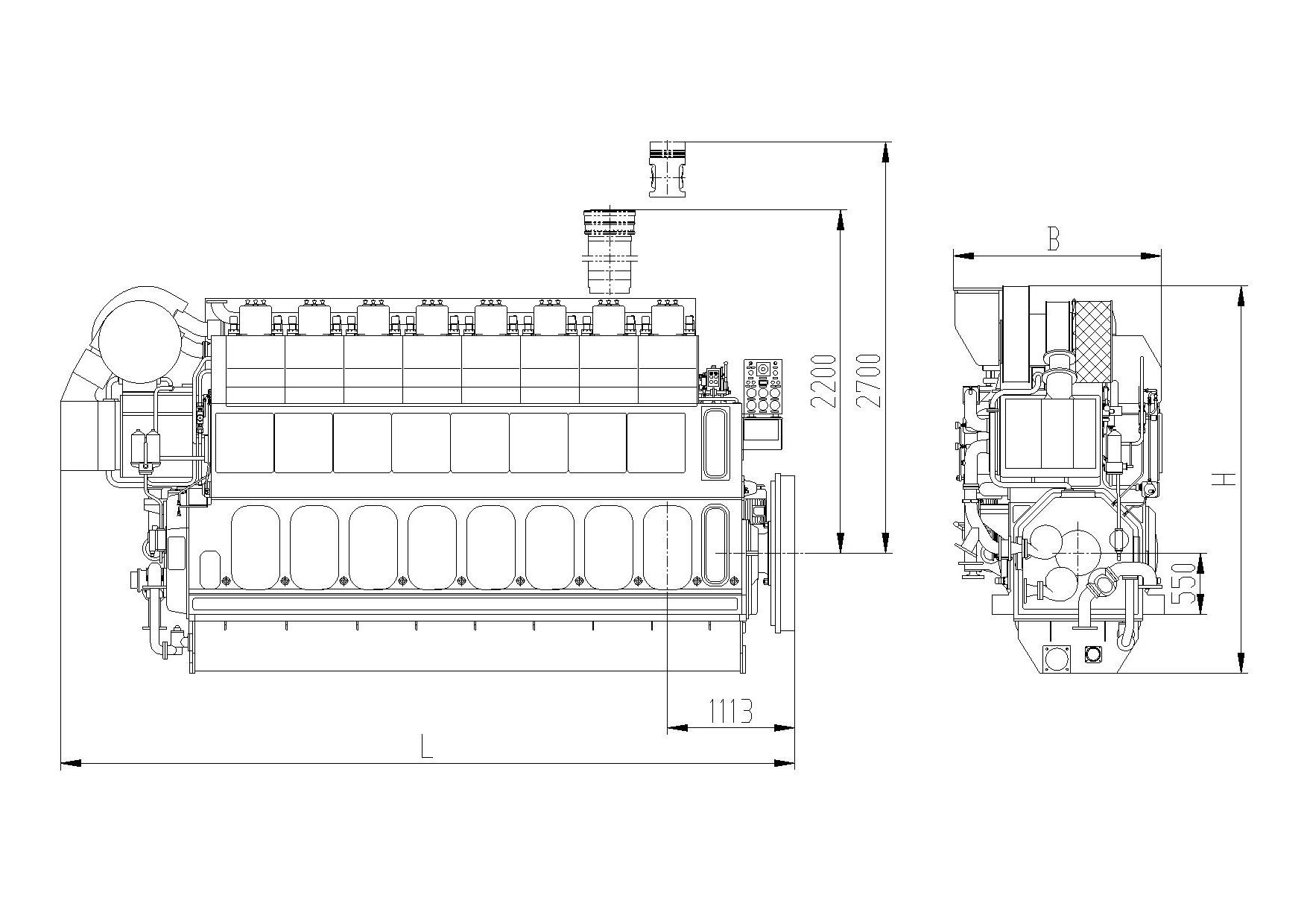

| 外形尺寸 Outline dimension (長×寬×高) (L×B×H) | mm | 6727×1904×3455 | 6727×1904×3455 | 6727×1904×3455 | |
| 重量 Weight | kg | 4600 | 4600 | 4600 | |
| 雙主機安裝最小中心距離 | mm | 2750 | 2750 | 2750 | |
| 證書 | ZY | ZY | ZY | ||
| 燃料類型Fuel type | 380cSt/50℃ HFO | 380cSt/50℃ HFO | 380cSt/50℃ HFO | ||
| | | | | | |
| 說明Explantions： | | | | | |
| 1、各型號發動機的供貨范圍，按相應技術文件執行。 | | | | | |
| The delivery scope for each model engines shall be performed as per the corresponding technical files. | |||||
| 2、所有機型均可滿足IMO TireⅡ的要求。 | | | | | |
| All the model engines can meet IMO Tire Ⅱ requirements. | | | | | |
