| 漁檢8缸主機 | |||||
| 項目Items | 單位Unit | ||||
| 系列Series | 8320系列 | ||||
| 型號Model | 8320ZCd-8 | 8320ZCd-6Y | 8320ZCd-4Y | ||
| 功率Power | kW/Ps | 2206/2800 | 1995/2712 | 1820/2475 | |
| 轉速Speed | rpm | 525 | 495 | 455 | |
| 缸徑Bore | mm | 320 | |||
| 沖程Stroke | mm | 440 | |||
| 活塞平均速度 Mean piston speed | m/s | 7.7 | 7.26 | 6.67 | |
| 平均有效壓力 BMEP | MPa | 1.781 | 1.709 | 1.696 | |
| 燃油(氣)消耗率 Fuel consumption | 100%MCR | g/kWh | 189 | 194 | 198 |
| 85%MCR | 187 | 192 | 196 | ||
| 潤滑油消耗率 Lube oil consumption | g/kWh | 1.2 | |||

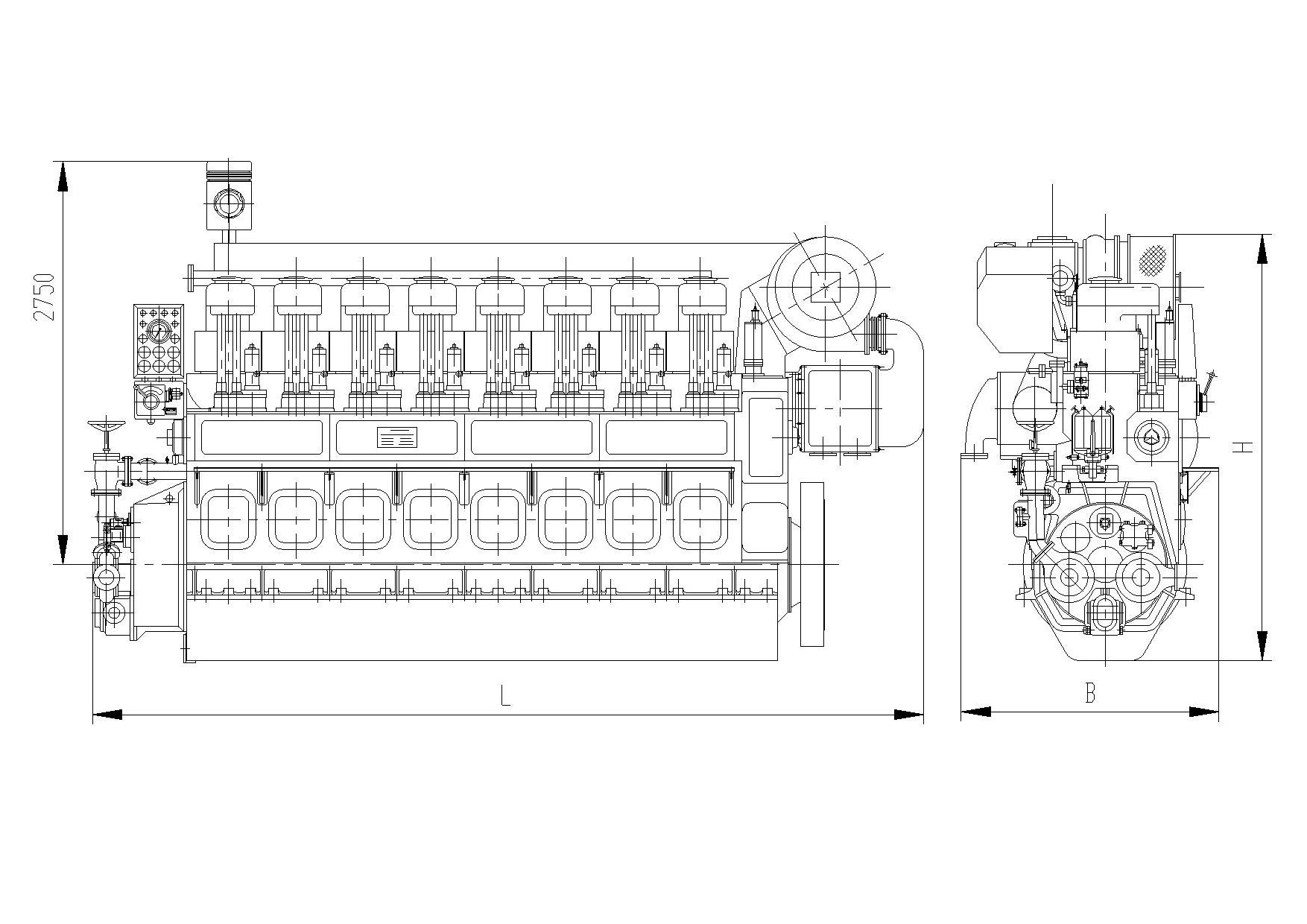

| 外形尺寸 Outline dimension (長×寬×高)(L×B×H) | mm | 6066×1853×3380 | 6012×1818×3380 | ||
| 重量 Weight | kg | 30000 | |||
| 雙主機安裝最小中心距離 | mm | 2800 | |||
| 證書 | ZY | ZY | ZY | ||
| 燃料類型Fuel type | 180cSt/50℃ HFO、MDO、MGO | 180cSt/50℃ HFO、MDO、MGO | 180cSt/50℃ HFO、MDO、MGO | ||
| 說明Explantions： | |||||
| 1、各型號發(fā)動機的供貨范圍，按相應技術文件執(zhí)行。 | |||||
| The delivery scope for each model engines shall be performed as per the corresponding technical files. | |||||
| 2、所有機型均可滿足IMO TireⅡ的要求。 | |||||
| All the model engines can meet IMO Tire Ⅱ requirements. | |||||
