| 9缸船用主機 Marine main engine | ||||||
| 項目Items | 單位Unit | |||||
| 系列Series | 9G26系列 | |||||
| 型號Model | 9G26 | 9G26-2 | 9G26-4 | 9G26-6 | ||
| 功率Power | kW/Ps | 3000 | 2646 | 2205 | 1985 | |
| 轉速Speed | rpm | 750 | ||||
| 缸徑Bore | mm | 260 | ||||
| 沖程Stroke | mm | 390 | ||||
| 活塞平均速度 Mean piston speed | m/s | 9.75 | ||||
| 平均有效壓力 BMEP | MPa | 2.57 | 2.27 | 1.89 | 1.70 | |
| 燃油(氣)消耗率Fuel consumption | 100%MCR | g/kWh | 183 | 183 | 184 | 185 |
| 85%MCR | 184 | 184 | 185 | 186 | ||
| 潤滑油消耗率Lube oil consumption | g/kWh | 0.7 | ||||

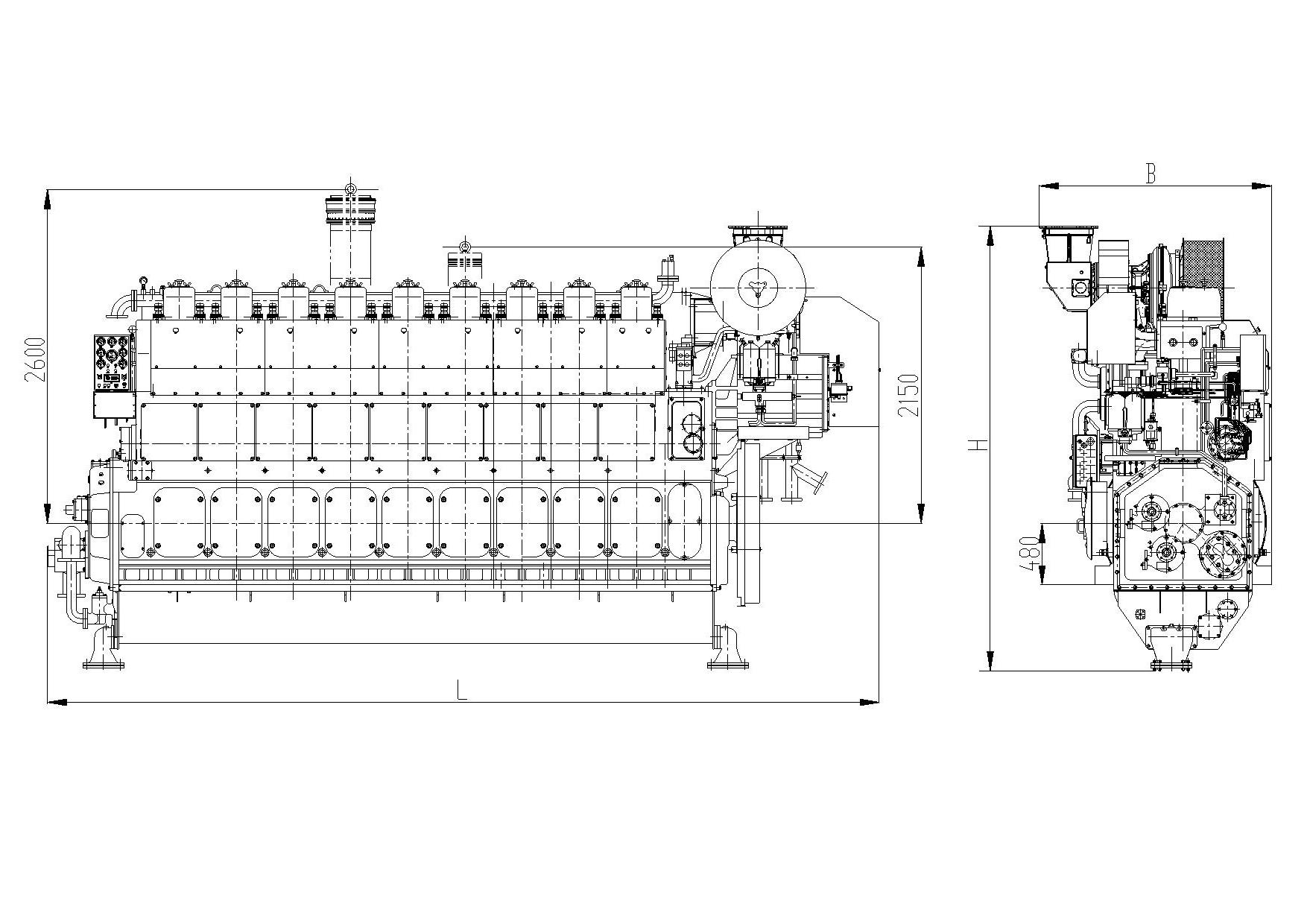

| 外形尺寸 Outline dimension （長×寬×高）(L×B×H) | mm | 6479×1810×3463 | ||||
| 重量 Weight | kg | 35000 | ||||
| 雙主機安裝最小中心距離 | mm | 2200 | ||||
| 證書 | CCS | |||||
| 燃料類型Fuel type | 380cSt/50℃ HFO | |||||
| 說明Explantions： | ||||||
| 1、各型號發動機的供貨范圍，按相應技術文件執行。 | ||||||
| The delivery scope for each model engines shall be performed as per the corresponding technical files. | ||||||
| 2、所有機型均可滿足IMO TireⅡ的要求。 | ||||||
| All the model engines can meet IMO Tire Ⅱ requirements. | ||||||
