| 8缸船用主機 Marine main engine | |||
| 項目Items | 單位Unit | ||
| 系列Series | CS21 | ||
| 型號Model | 8CS21/32 | ||
| 功率Power | kW/Ps | 1760 | |
| 轉速Speed | rpm | 1000 | |
| 缸徑Bore | mm | 210 | |
| 沖程Stroke | mm | 320 | |
| 活塞平均速度 Mean piston speed | m/s | 10.67 | |
| 平均有效壓力 BMEP | MPa | 2.38 | |
| 燃油(氣)消耗率Fuel consumption | 100%MCR | g/kWh | 187 |
| 85%MCR | 190 | ||
| 潤滑油消耗率Lube oil consumption | g/kWh | 0.6±0.3 | |

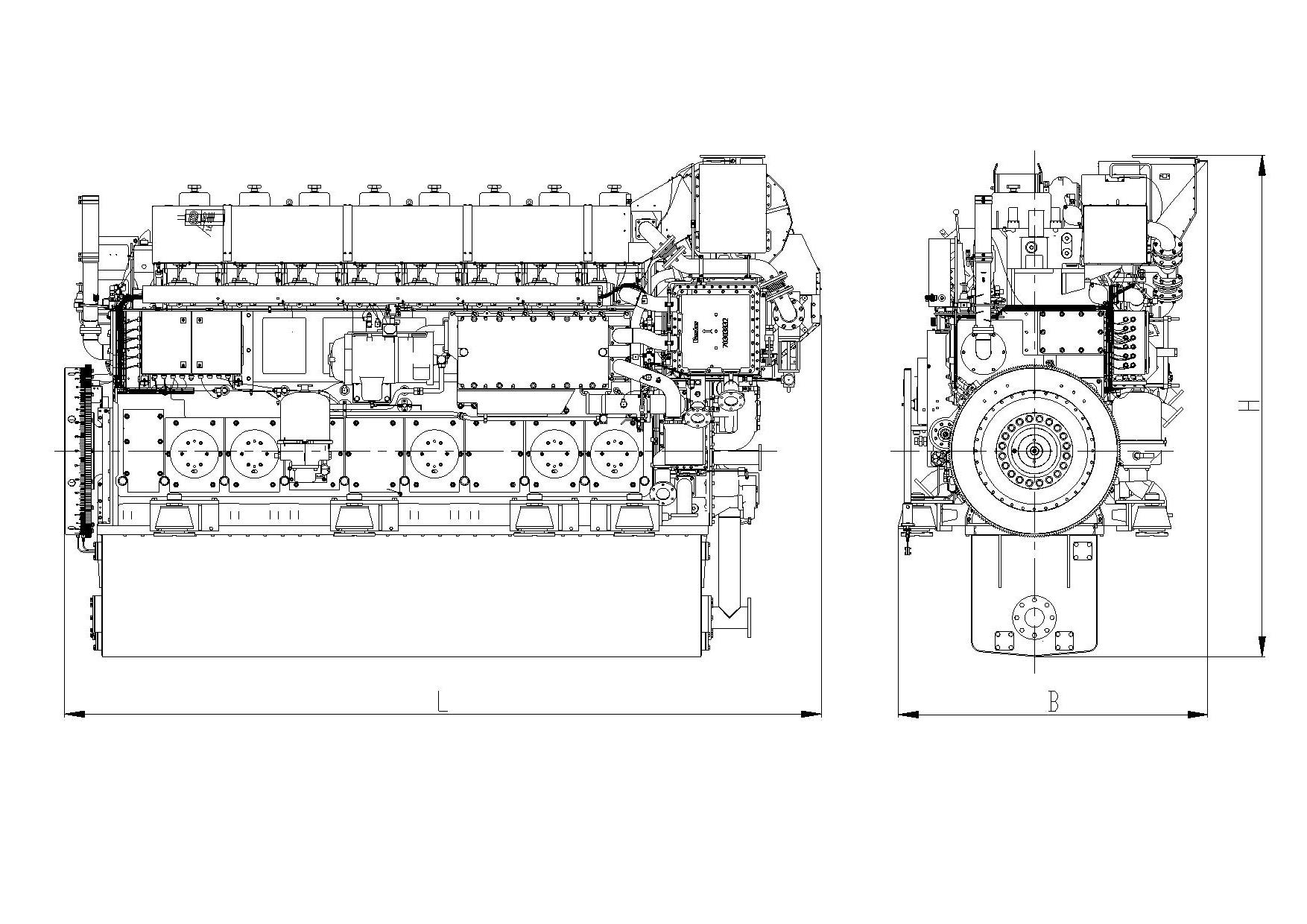

| 外形尺寸 Outline dimension（長×寬×高）(L×B×H) | mm | 4542×1771×3005 | |
| 重量 Weight | kg | ≈19000 | |
| 雙主機安裝最小中心距離 | mm | 2750 | |
| 證書 | CCS | ||
| 燃料類型Fuel type | 380cSt/50℃ HFO | ||
| | | | |
| 說明Explantions： | | | |
| 1、各型號發動機的供貨范圍，按相應技術文件執行。 | | | |
| The delivery scope for each model engines shall be performed as per the corresponding technical files. | |||
| 2、所有機型均可滿足IMO TireⅡ的要求。 | | | |
| All the model engines can meet IMO Tire Ⅱ requirements. | | | |
