| 漁檢8缸主機 |
|
|
|
|
| 項目Items | 單位Unit |
|
|
| 系列Series | | 230 |
|
| 型號Model | | 8230ZC | 8230ZC-4 |
| 功率Power | kW/Ps | 1080/1470 | 1280/1740 |
| 轉速Speed | rpm | 750 | 900 |
| 缸徑Bore | mm | 230 | 230 |
| 沖程Stroke | mm | 300 | 300 |
| 活塞平均速度 Mean piston speed | m/s | 7.5 | 9.0 |
| 平均有效壓力 BMEP | MPa | 1.73 | 1.712 |
| 燃油(氣)消耗率Fuel consumption | 100%MCR | g/kWh | 192 | 192 |
| 85%MCR | 190 | 190 |
| 潤滑油消耗率Lube oil consumption | g/kWh | 1.0 | 1.0 |

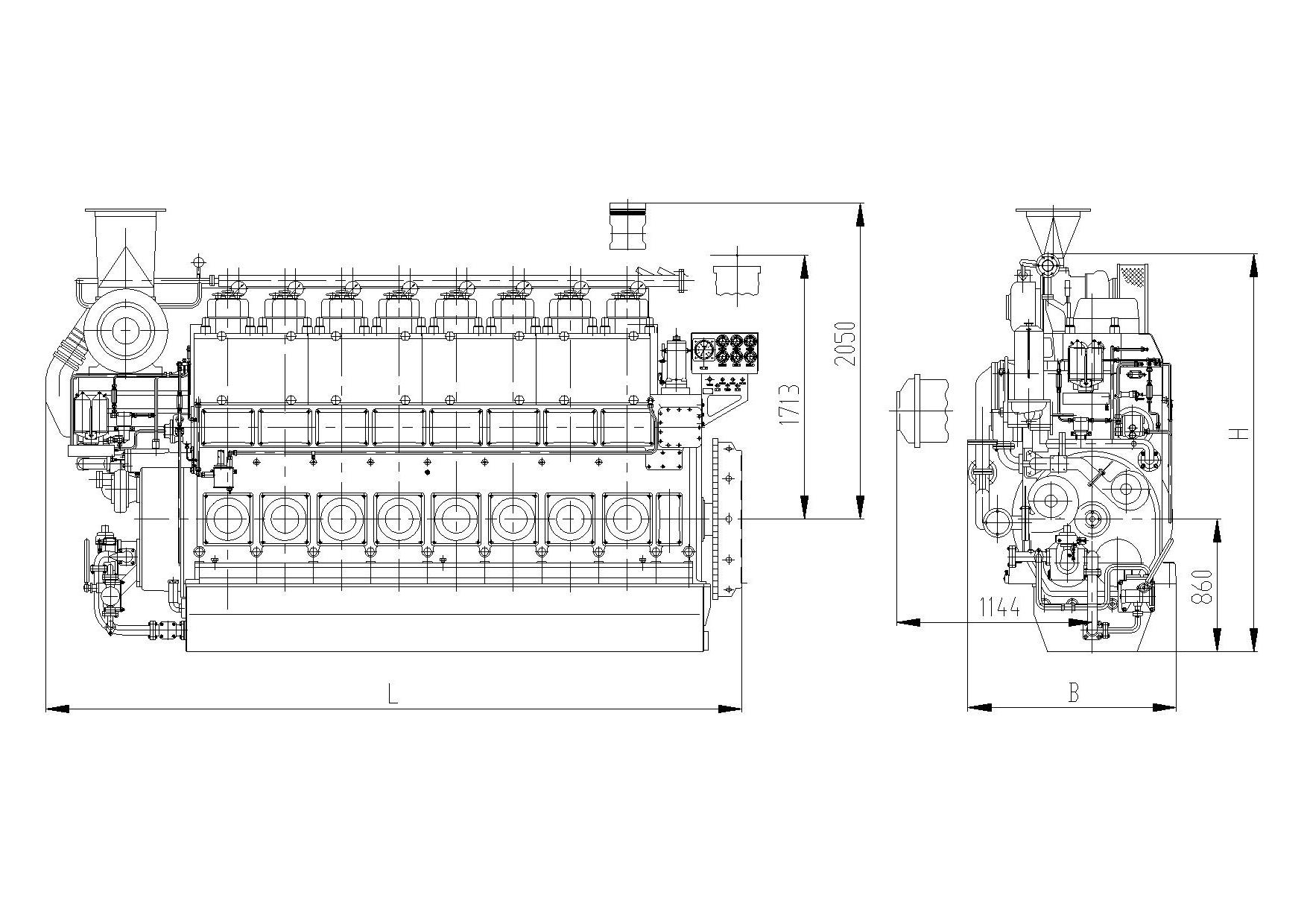

| 外形尺寸 Outline dimension （長×寬×高）(L×B×H) | mm | 4638×1353.5×2543 | 4638×1353.5×2543 |
| 重量 Weight | kg | 14500 | 14500 |
| 雙主機安裝最小中心距離 | mm | 1800 | 1800 |
| 證書 | | ZY | ZY |
| 燃料類型Fuel type | | LDO/MDO、180-380cSt/50℃ HFO | LDO/MDO、180-380cSt/50℃ HFO |
|
|
|
|
|
| 說明Explantions： |
|
|
|
| 1、各型號發動機的供貨范圍，按相應技術文件執行。 |
|
|
|
|
| The delivery scope for each model engines shall be performed as per the corresponding technical files. |
| 2、所有機型均可滿足IMO TireⅡ的要求。 |
|
|
|
|
| All the model engines can meet IMO Tire Ⅱ requirements. |
|
|
|
|
