| 8缸船用主機 Marine main engine | ||||||
| 項目Items | 單位Unit | |||||
| 系列Series | 8320系列 | |||||
| 型號Model | 8320ZCd-4 | 8320ZCd-6 | 8320ZCd-8 | 8320ZCd-10 | ||
| 功率Power | kW/Ps | 1765/2400 | 2060/2800 | 2206/3000 | 2427/3300 | |
| 轉速Speed | rpm | 500 | 525 | 525 | 550 | |
| 缸徑Bore | mm | 320 | ||||
| 沖程Stroke | mm | 440 | ||||
| 活塞平均速度 Mean piston speed | m/s | 7.3 | 7.7 | 7.7 | 8.07 | |
| 平均有效壓力 BMEP | MPa | 1.495 | 1.662 | 1.782 | 1.87 | |
| 燃油(氣)消耗率 Fuel consumption | 100%MCR | g/kWh | 198 | 198 | 189 | 189 |
| 85%MCR | 196 | 196 | 186 | 186 | ||
| 潤滑油消耗率Lube oil consumption | g/kWh | 1.2 | ||||

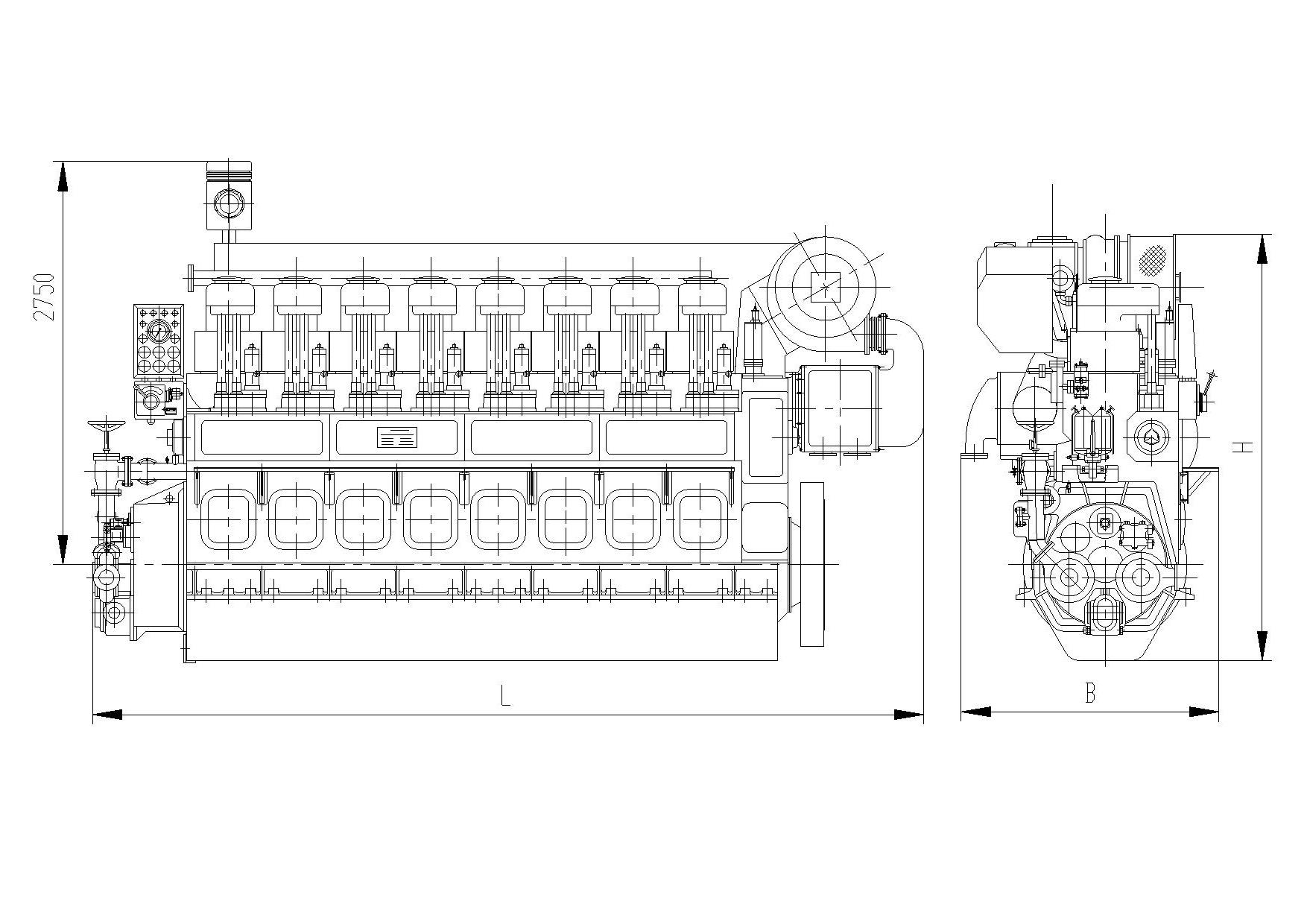

| 外形尺寸 Outline dimension （長×寬×高）(L×B×H) | mm | 6012×1818×3380 | 6066×1853×3380 | |||
| 重量 Weight | kg | 30000 | ||||
| 雙主機安裝最小中心距離 | mm | 2800 | ||||
| 證書 | CCS/BV | CCS/BV | CCS/BV | CCS | ||
| 燃料類型Fuel type | 180cSt/50℃ HFO、MDO、MGO | |||||
| 說明Explantions： | ||||||
| 1、各型號發動機的供貨范圍，按相應技術文件執行。 | ||||||
| The delivery scope for each model engines shall be performed as per the corresponding technical files. | ||||||
| 2、所有機型均可滿足IMO TireⅡ的要求。 | ||||||
| All the model engines can meet IMO Tire Ⅱ requirements. | ||||||
