| 項目Items | 單位Unit | | | | | |
| 型號Model | 6230SG | | | | | |
| 功率Power | kW/Ps | 660/900 | | | | |
| 氣缸直徑 Cylinder diameter | mm | 230 | | | | |
| 活塞行程 Piston stroke | mm | 300 | | | | |
| 轉(zhuǎn)速 Speed | rpm | 750 | | | | |
| 活塞平均速度 Mean piston speed | m／s | 7.5 | | | | |
| 甲烷值 Methane number | ≥80 | | | | | |
| 平均有效壓力 BMEP | MPa | 1.41 | | | | |
| 最高燃燒壓力Max.combution pressure | MPa | 11.5 | | | | |
| 燃料 Fuel | 天然氣Natural gas MN≥80，Hl=28～36MJ/Nm3 | | | | | |
| 燃氣消耗率Specific fuel gas consumption | kJ/kW·h | 8617 | | | | |
| 機油消耗率 Lube oil consumption | g/kW·h | 0.8 | | | | |
| 氮氧化物 NOx emission | g/kW·h | 1.5～2.0 | | | | |
| 總碳化物 Carbide emission | g/kW·h | 483 | | | | |
| 廢氣煙度 FSN（M） | 0 | | | | | |
| 顆粒物 PM | g/kW·h | 0 | | | | |
| 廢氣排量 Exhaust mass | g/kW·h | 6500 | | | | |
| 廢氣溫度 Exhaust temperature | ℃ | 420 | | | | |

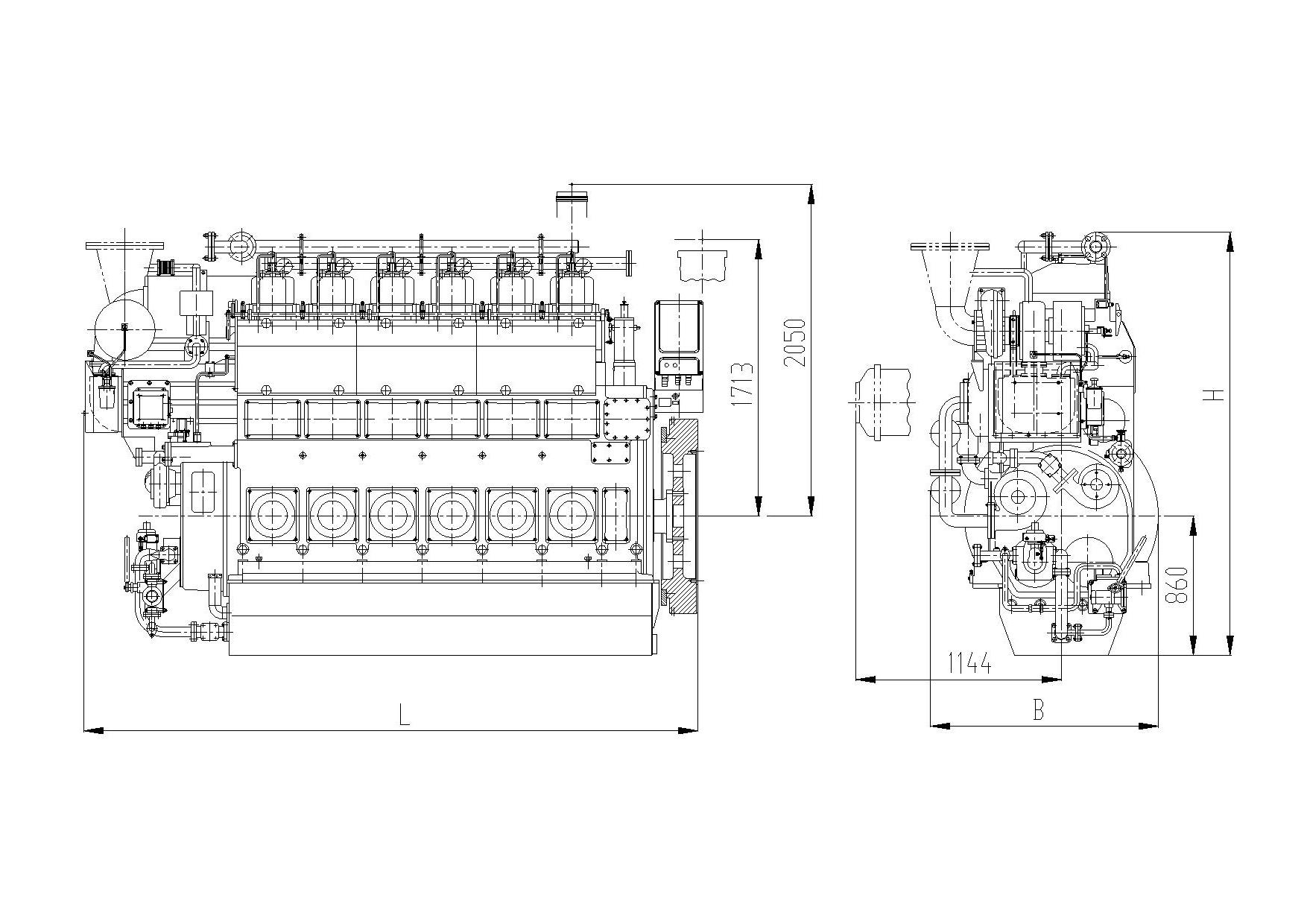

| 外形尺寸Outline dimension | mm | 3748×1360×2600 | | | | |
| 重量Weight of engine | kg | 11500 | | | | |
| 雙主機安裝最小中心距離 | mm | 2000 | | | | |
| 證書 | | CCS、DNV | | | | |
| | | | | | | |
| 說明Explantions： | | | | | | |
| 1、各型號發(fā)動機的供貨范圍，按相應技術(shù)文件執(zhí)行。 | | | | | | |
| The delivery scope for each model engines shall be performed as per the corresponding technical files. | ||||||
| 2、所有機型均可滿足IMO TireⅡ的要求。 | | | | | | |
| All the model engines can meet IMO Tire Ⅱ requirements. | | | | | | |
